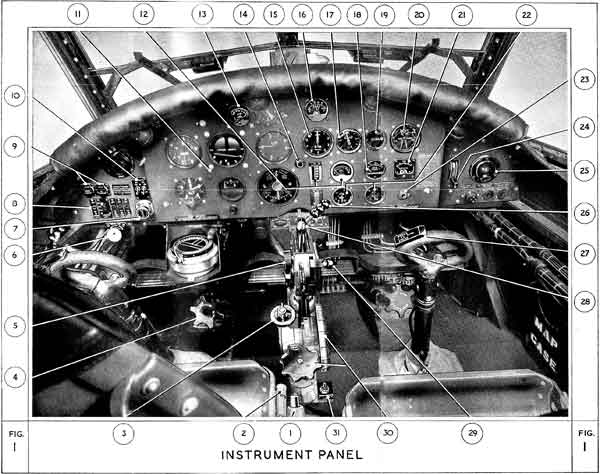

KEY TO Fig. 1
INSTRUMENT PANEL
1. Seat adjusting lever.
2. Harness release.
3. Fuel cock control.
4. Rudder pedals adjuster.
5. Throttles damper.
6. Air intake heat control.
7. Priming pump.
8. Electrical switch panel.
9. Engine starter and oil dilution pushbuttons.
10. Ignition switches.
11. Instrument flying panel.
12. Oil pressure and temperature gauges.
13. Free air temperature gauge.
14. Engine fire-warning light
15. R.p.m. indicator.
16. Carburettor air temperature gauge.
17. Boost gauge.
18. Cylinder temperature gauge.
19. Flaps position indicator.
20. Pneumatic supply and brakes pressure gauge.
21. Voltmeter.
22. Fuel tank contents gauges.
23. Generator failure warning light.
24. GROUND/FLIGHT switch.
25. Cockpit ventilator.
26. R.p.m. control lever.
27. Press-to-speak switch.
28. Throttle control.
29. Flaps control.
30. Elevator and rudder trimmer controls.
31. T.R. 1920 muting switch.
