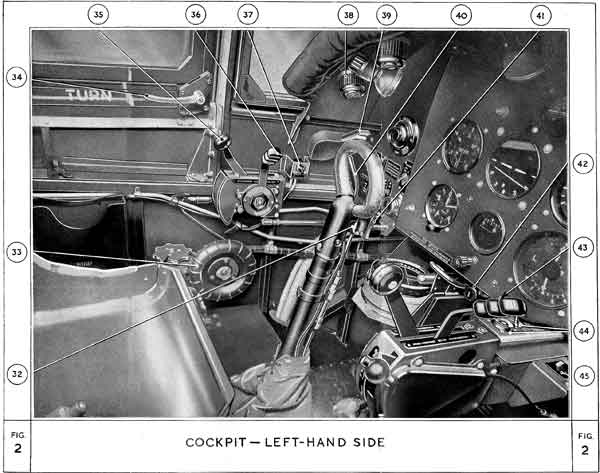

KEY TO Fig. 2
COCKPIT - LEFT-HAND SIDE
32. Wheel brake parking clamp.
33. Elevator and rudder trimming controls.
34. Sliding hood panel latch.
35. Throttle lever.
36. R.p.m. control lever
37. ARI 5386 Muting switch.
38. U.V. lights dimmer switch.
39. Press-to-speak switch.
40. Wheel brakes lever.
41. Cockpit heating control.
42. Slow-running cut-out control.
43. Air intake filter control (not visible).
44. Identification light, switch and morsing pushbutton.
45. Identification light colour selector switch.
29
|
