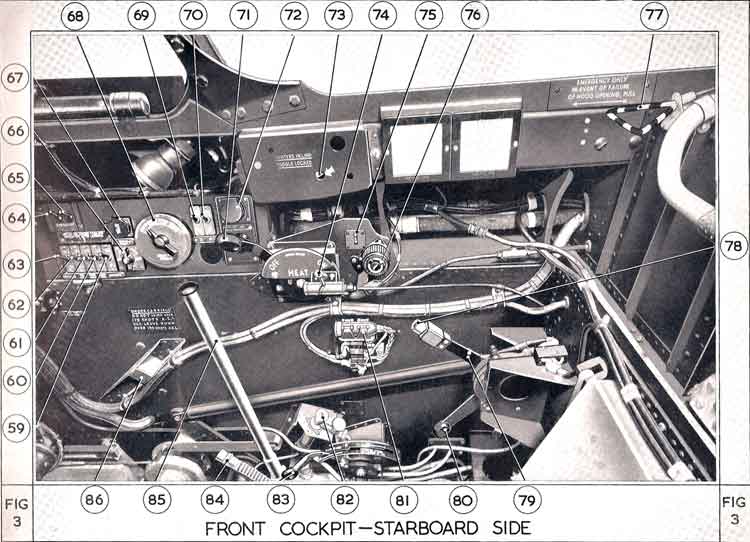

KEY TO Fig. 3
FRONT COCKPIT-STARBOARD SIDE
59. Compass master switch
60. Resin lights switch
61. Pressure head heater switch
62. Navigation lights switch
63. Camera master switch
64. Compass emergency A.C. switch
65. Compass emergency D.C. switch
66. Identification lights colour selector switch
67. Identification lights pushbutton
68. G.G.S. selector dimmer control
69. I.F.F. D switch
70. I.F.F. F switch
71. Cockpit heating control
72. I.F.F. controller
73. Hood starboard catches indicator
74. Safety harness release
75. Windscreen heater switch
76. Emergency lamp dimmer switch
77. Hood rear hooks emergency release
78. Starboard engine relight button
79. Starboard engine H.P. cock
80. Starboard engine L.P. cock
81. Mic/tel socket
82. Windscreen de-icing handpump
83. Wing drop tanks jettison lever
84. Oxygen tube
85. Hydraulic emergency handpump
86. Brackets for control locking rod
