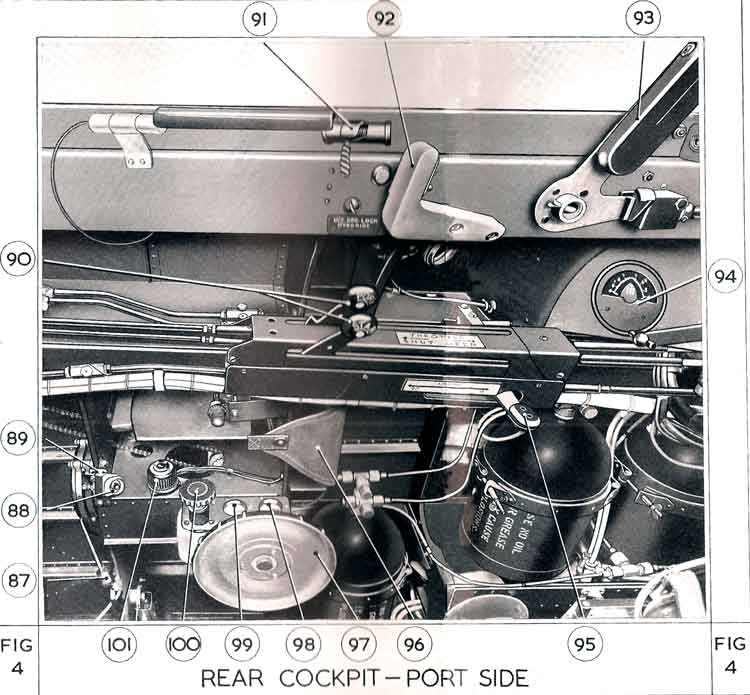

KEY TO Fig. 4
REAR COCKPIT-PORT SIDE
87. Port engine L.P. cock lever
88. Port engine relight button
89. Port engine H.P. cock lever
90. Throttle levers (two)
91. Undercarriage emergency override lever
92. Guard for hood opening lever
93. Hood opening lever
94. Jet pipe temperature gauge
95. Airbrakes control lever
96. I.F.P.E. goggles stowage
97. Elevator trimming tab handwheel
98. Elevator
99. Rudder trimming tab indicator
100. Rudder trimming tab control
101. Auxiliary red lamps dimmer switch
