KEY TO Fig. 2

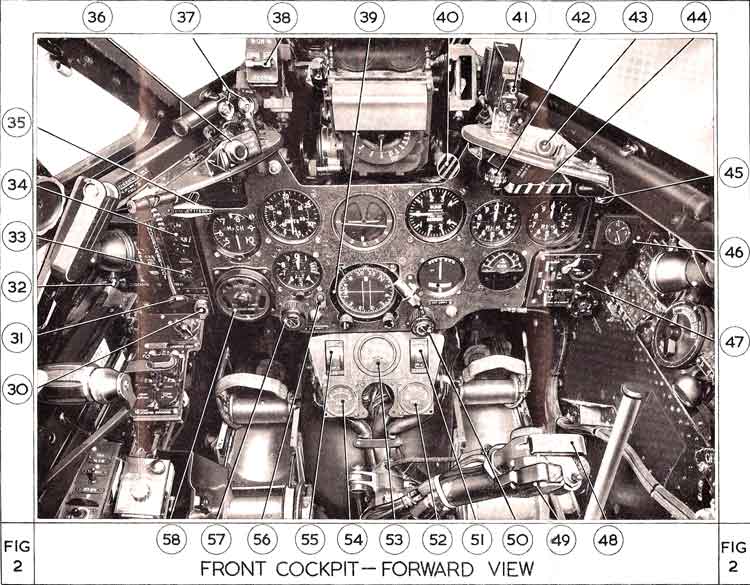

FRONT COCKPIT-FORWARD VIEW
30. Drop tanks transfer warning light
31. Undercarriage selector lever
32. Flaps selector lever
33. Rudder pedal adjuster release
34. Flaps position indicator
35. Drop tanks control
36. Port engine fire-warning light
37. G.G.S. spare filaments
38. G.G.S. control switch
39. Mk. 4F compass
40. G.G.S. emergency retraction switch
41. G.G.S. master circuit breaker
42. E.2.A. compass
43. Starboard engine fire-warning light
44. Hood jettison handle
45. Engine fire-extinguisher pushbuttons (two)
46. Clock
47. Oxygen regulator
48. Press-to-transmit switch
49. Camera control button
50. Instrument panel red lamps dimmer switch
51. Starboard engine oil pressure gauge
52. Fuel contents gauge (rear compartment)
53. A.C. voltmeter
54. Fuel contents gauge (front compartment)
55. Port engine oil pressure gauge
56. Undercarriage warning light
57. Instrument panel u/v lamps dimmer switch
58. Undercarriage position indicator
