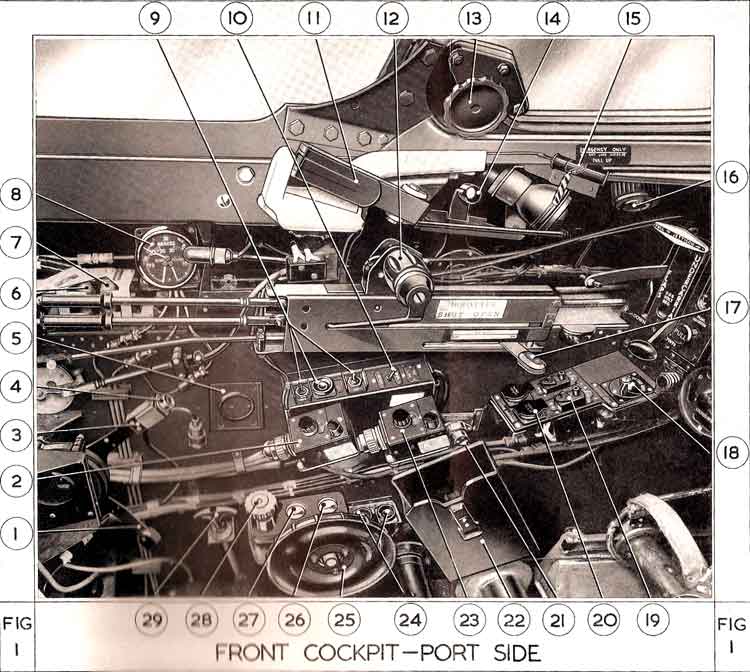

KEY TO Fig. 1
FRONT COCKPIT-PORT SIDE
1. Port engine L.P. cock lever
2. No. 2 V.H.F. controller
3. Port engine H.P. cock lever
4. Port engine relight button
5. Mounting for camera footage indicator
6. Micro-switch for operating undercarriage warning light
7. Throttle micro-switch in starting circuit
8. Pneumatic triple-pressure gauge
9. I.F.F. manual, G-auto and G-D switches
10. V.H.F. change-over switch
11. Hood operating lever
12. Throttle valves (two)
13. Direct vision panel control handwheel
14. Cockpit ventilation control
15. Undercarriage emergency override lever
16. Auxiliary red lamps dimmer switch
17. Airbrakes control lever
18. Landing lamp switch
19. L.P. pumps circuit breakers (two)
20. Engine starter puchbuttons (two)
21. L.P. pumps ammeter test socket
22. Map case
23. No. 1 V.H.F. controller
24. L.P. pumps test pushbuttons (two)
25. Elevator trimming tab handwheel
26. Elevator trimming tab indicator
27. Rudder trimming tab indicator
28. Rudder trimming tab control
29. Fuel balance cock
45
|
