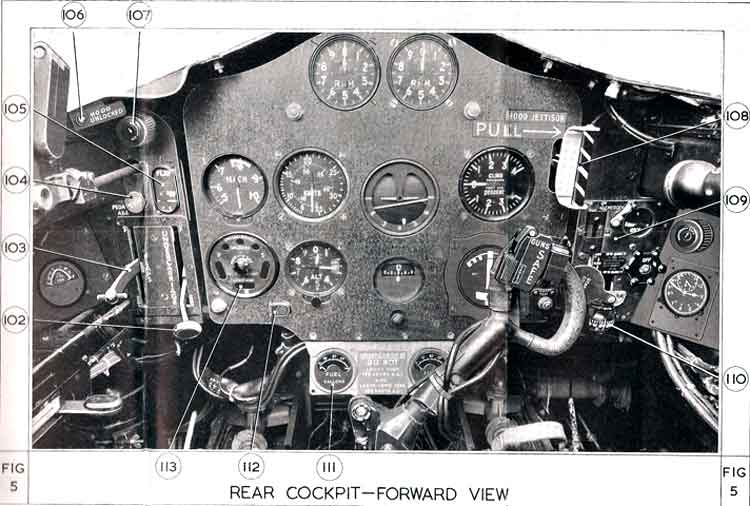

KEY TO Fig. 5
REAR COCKPIT-FORWARD VIEW
102. Undercarriage selector lever
103. Flaps selector lever
104. Rudder pedals adjuster release
105. Flaps position indicator
106. Hood unlocked warning light
107. J.p.t. gauge lamp dimmer switch
108. Hood jettison handle
109. Oxygen regulator
110. E.2.A compass
111. Fuel contents gauges (two)
112. Undercarriage warning light
113. Undercarriage position indicator
