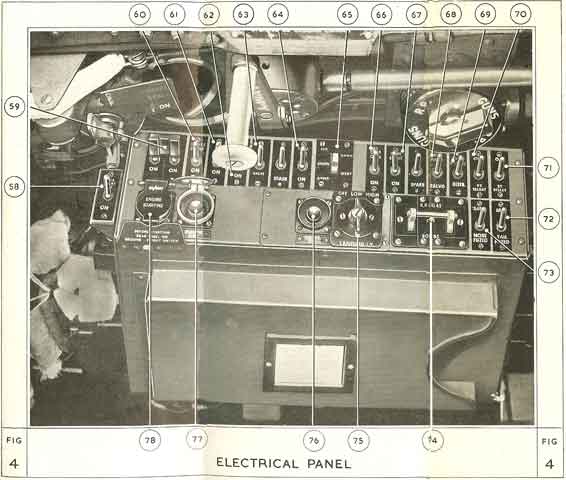

KEY TO Fig. 4
ELECTRICAL PANEL
58. Auxiliary starting switch.
59. Engine starter and master.
switches.
60. Fuel booster pump switch.
61. Pressure-head heater switch.
62. R.I. compass switch.
63. Switch marked VALVE (not in
use).
64. Navigation lights switch.
65. Identification lights selector
switch.
66. Cine-camera master switch.
67. Gyro gun sight master switch.
68. R.P. pairs-salvo switch.
69. Bomb distributor-salvo switch.
[Not in notes.]
70. Bomb selector switch, Port.
71. Bomb selector switch, Starboard.
72. Bombs, tail fusing switch.
73. Bombs, nose fusing switch.
74. R.P. Bombs masters switch.
75. Landing lamp switch.
76. Identification lights pushbutton.
77. Fire extinguisher pushbutton.
78. Engine starter pushbutton.
48
|
