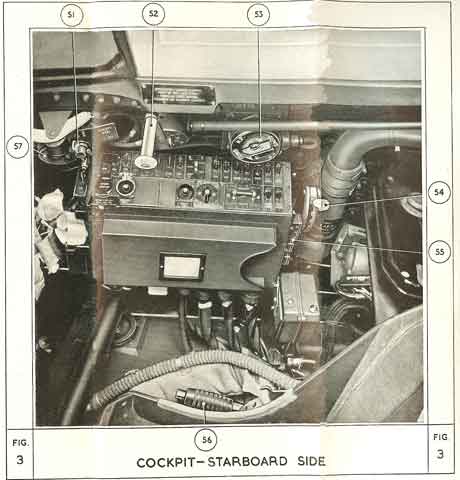

KEY TO Fig. 3
COCKPIT-STARBOARD SIDE
51. Canopy seal cock.
52. Canopy winding handle.
53. R.P. Guns selector switch.[Not in Notes.]
54. Cockpit heating control.
55. R.P. Auto selector switch.[Not in Notes.]
56. Seat adjusting lever.
57. Cockpit pressure control lever.
