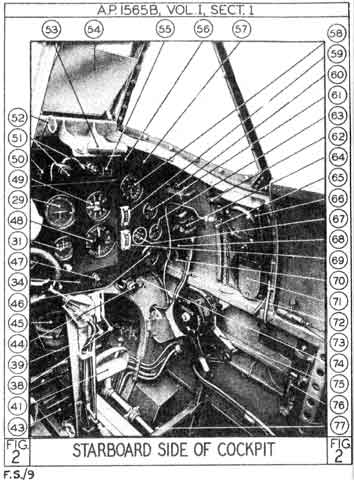

Key to fig. 2
Starboard side of cockpit
[Click green text to jump to detail in Pilots Note.]
Click numbers round picture for description of that item in the Notes
(Click green number beside the item to return to this page).
29. Artificial horizon
31. Direction indicator
34. Cockpit lamp dimmer switch
38. Fuel cock lever (top tank)
39. Fuel cock lever (bottom tank)
43. Brake relay valve
44. Priming pump
45. Compass
46. Fuel contents gauge
47. Engine starting pushbutton
48. Turning indicator
49. Rate of climb indicator
50. Reflector sight main switch
51. Reflector sight lamp dimmer switch
52. Lifting ring for dimming screen
53. Reflector gun sight mounting
54. Dimming screen
55. Ammeter
56. Generator switch
57. Ventilator control
58. Engine speed indicator
59. Fuel pressure gauge
60. Spare filament for reflector sight
61. Boost gauge
62. Cockpit lamp
63. Radiator temperature gauge
64. Signalling switch box
65. Oxygen socket
66. Wireless remote contactor mounting and switch
67. Oil temperature gauge
68. Engine date plate
69. Oil pressure gauge
70. Cartridge starter reloading control
71. Height and airspeed computer stowage
72. Control locking lug
73. Harness release
74. Slow-running cut-out control
75. Undercarriage control lever
76. Undercarriage emergency lowering lever
77. Control locking lug
