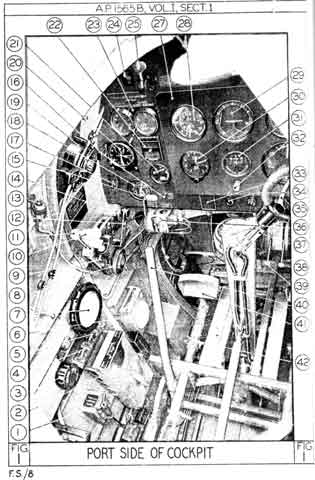

Key to fig. 1
Port side of cockpit
[Click green text to jump to detail in Pilots Note.]
Click numbers round picture for description of that item in the Notes
(Click green number beside the item to return to this page).
1. Flare release control
2. Map stowage box
3. Rudder trimming tab control
4. Pressure head heating switch
5. Camera-gun master switch
6. Writing pad container
7. Elevator trimming tab control
8. Throttle and mixture friction adjusters
9. Push switch for silencing warning horn
10. Throttle lever
11. Mixture lever
12. Airscrew control lever
13. Connection for cine-camera footage indicator
14. Boost cut-out control
15. Landing lamp dipping lever
16. Landing lamps switch
17. Main magneto switches
18. Brake triple pressure gauge
19. Wireless remote controller
20. Clock
21. Elevator trimming tabs position indicator
22. Undercarriage position indicator
23. Oxygen regulator
24. Navigation lamps switch
25. Flaps control
27. Instrument-flying panel
28. Airspeed indicator
29. Artificial horizon
30. Altimeter
31. Direction indicator
32. Setting knob for (31)
33. Compass deviation card holder
34. Cockpit lamp dimmer switches
35. Brake lever
36. Landing lamp lowering control
37. Control column
38. Fuel cock lever (top tank)
