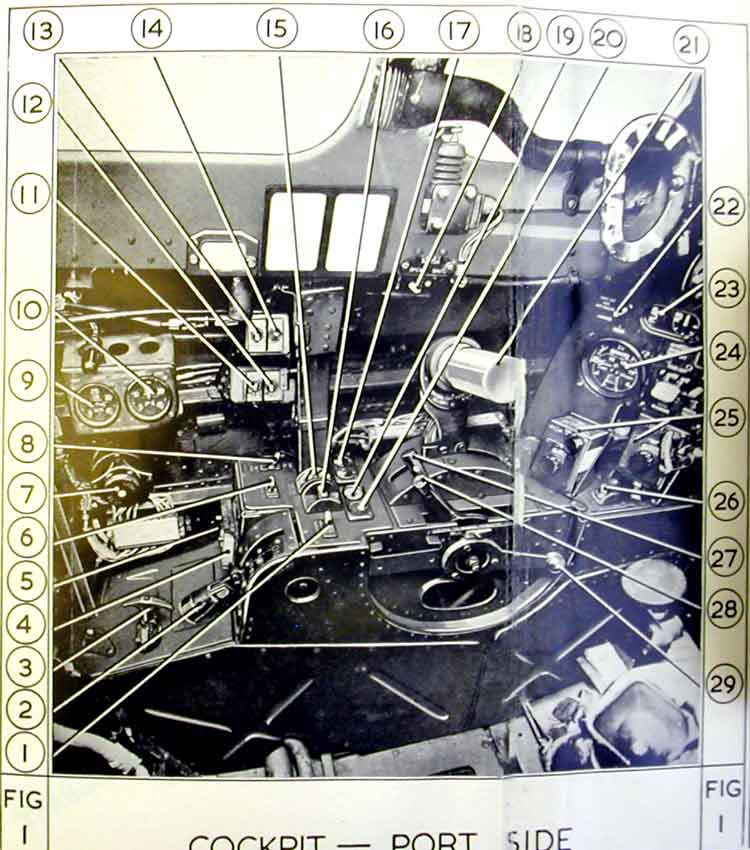

KEY TO FIG. 1 - COCKPIT PORT SIDE
[Click green text to jump to detail in Pilots Notes.]
Click numbers round picture for description of that item in the Notes
(Click green number beside the item to return to this page).
1.Rudder trim switch.
2.H.P. cock control.
3.Belly tank jettison control.
4.Flap emergency selector.
5.Undercarriage emergency selector..
6.Aileron trim switch.
7.Cockpit vent.
8.Tailplane incidence FAST/SLOW switch.
9.Port main accumulator pressure gauge.
10.Starboard main accumulator pressure gauge.
11.Engine anti-icing switch.
12.Windscreen demist switch.
13.Cockpit pressure master switch.
14.Cockpit temperature control switch.
15.Tailplane incidence main trim isolation switch.
16.Tailplane duplicate slow control switch.
17.Rudder and aileron trim position indicators.
18.Hood motor control switch.
19.Cockpit temperature indicator.
20.Tailplane incidence position indicator.
21.Throttle lever. (NOTE:- Protective
cover on lever obscurers inching
switch and press-to-transmit switch.)
22.Flaps limit setting switch.
23.Flaps position indicator.
24.Triple pressure gauge.
25.V.H.F. controllers.
26. V.H.F. changeover switch.
27. Engine L.P. fuel cock.
28. Reheat L.P. fuel cock.
29. Tailplane incidence preselector switch.
