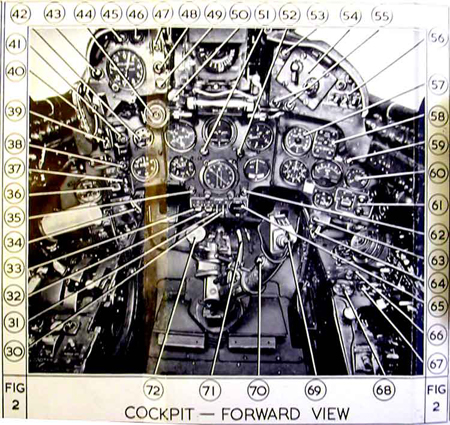

KEY TO FIG. 2 - COCKPIT FORWARD VIEW
[Click green text to jump to detail in Pilots Notes.]
Click numbers round picture for description of that item in the Notes
(Click green number beside the item to return to this page).
30.Battery isolation switch.
31.Fuel master switch.
32.Ignition switch.
33.Starter master switch.
34.Aileron power selector..
35.Aileron power engaged green light.
36.Fuel Take-off-Normal auto override switch.
37.Pitot head heater switch.
38.Inverter changeover indicator.AL1/57
39.Wheelbrakes boost switch.
40.Hood jettison control.
41.Undercarriage selector pushbuttons.
42.Undercarriage position indicator.
43.Reheat nozzle eyelids position indicator.
44.Cockpit ventilating louvre.
45.Zone 1 and 2 Fire warning light and pushbutton.
46.Zone 4 and 5 Fire warning light and pushbutton.
47.Reheat shut-off switch.
48.Hot gas amber warning light.
49.Air extraction failure magnetic indicator.
50.G.G.S. emergency lowering control.
51.Artificial horizon fast erection button.
52.Power controls unsafe flashing red light.
53.Cockpit pressure failure light.
54.G.G.S. selector dimmer.
55.Generator failure indicators.
56.F.95 camera switches and lights.
57.D.M.E. range and heading meter.
58.Fuel flow failure indicators.
59.Fuel pressure warning indicator.
60.Fuel contents gauge.
61.Fuel auto-retrim switch and indicators.
62.Elevator power engaged green light.
63.Belly tank empty indicator.
64.Elevator power selector.
65.Starter pushbutton.
66.Mk.17 demand oxygen regulator.
67.Oxygen contents gauge.
68.Cockpit altimeter.
69. Tailplane incidence control switch.
70. Camera pushbutton.
71. Wheelbrakes control.
72. Aileron artificial feel trim.
