PART VII-ILLUSTRATIONS

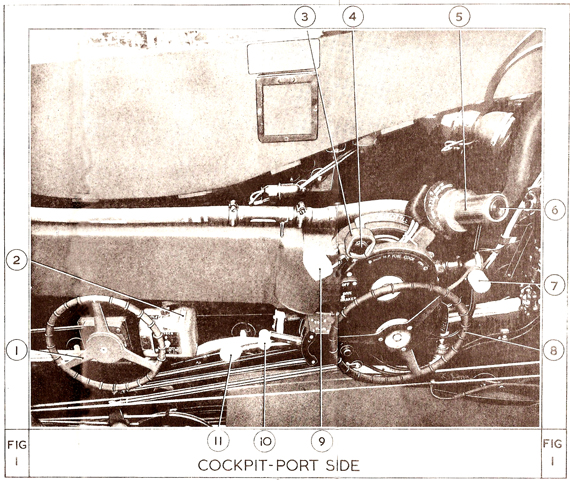

KEY TO FIG. 1
1. Cabin temperature/pressure selector
2. Oxygen line valve control lever
3. H.P. fuel cock lever
4. Relight button
5. Throttle lever (port)
6. Press-to-transmit switch
7. L.P. fuel cock lever
8. Elevator trim control
9. Airbrakes control
10. Flaps control (port)
11. Undercarriage control (port)
76
|
