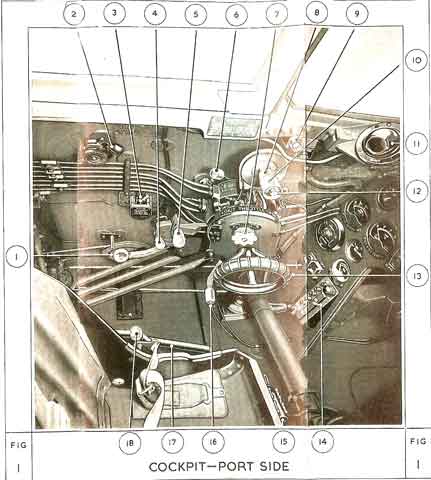

KEY TO Fig. 1
COCKPIT-PORT SIDE
1. Undercarriage selector lever.
2. GROUND/FLIGHT master.
switch.
3. Undercarriage emergency retrac-
tion switch.
4. Flaps selector lever.
5. Dive brakes control lever.
6. High-pressure fuel cock lever.
7. Friction adjuster.
8. Throttle lever.
9. Booster-coil pushbutton.[Not in Notes.]
10. Gyro gun-sight ranging control.
11. Cockpit ventilator.
12. R.P. and bombs firing push-
button.
13. Elevator trimming tab control.
14. Controller for T.R. 1464.
15. Mic-Tel socket.[Not in Notes.]
16. Low-pressure fuel cock lever.
17. Hydraulic handpump.
18. Wing drop tanks jettison lever.
45
|
