Addendum Part 7
[Click green text to jump to detail in Pilots Note.]
Click numbers in the picture for description of that item in the Notes
(Click green number beside the item to return to this page).

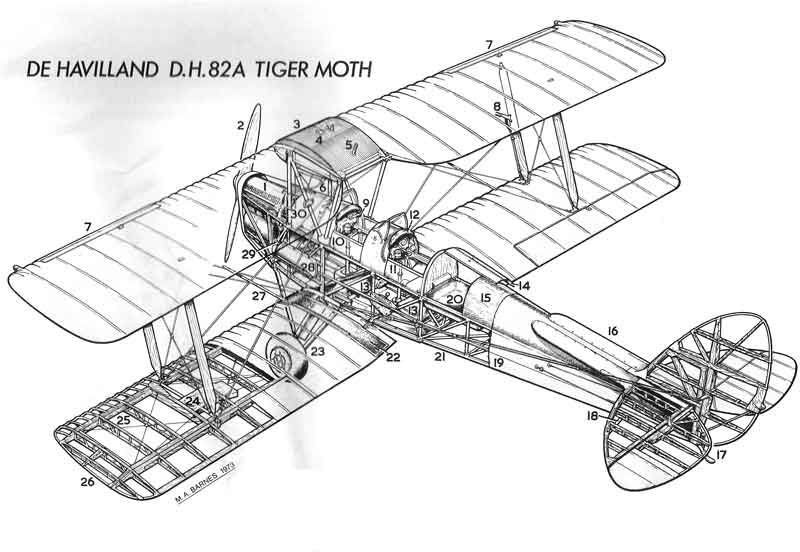

KEY TO Fig. 7
1. D.H. Gipsy Major 1 or 1F Engine
2. Fixed Pitch Wooden Propellor
3. Fuel Tank (19 gallons)
4. Fuel Filler Point
5. Fuel Contents Gauge
6. Fuel Supply Pipe
7. Automatic Slats
8. Pitot Head
9. Intercom. Speaking Tube
10. Hinged Cockpit Side Panels
11. Dual Flying Controls
12. Sponge Rubber Padding
13. Welded Aluminium Seats
14. Luggage Locker Access Door
15. Plywood Decking
16. Anti-Spin Strakes
17. Steerable Tail Skid
18. Tailplane Bracing Tube
19. Fabric Covering
20. Luggage Locker
21. Welded Steel Tubing
22. Walkway
23. Divided Axle Type Undercarriage
24. Aileron Sprocket Housing
25. Spruce Spars and Ribs
26. Light Alloy Tip
27. Bracing Wire Spreader Bars
28. Oil Tank (2.1 gallons)
29. Oil Tank Filler
30. Rear View Mirror
Tiger Moth detailed drawing
Reproduced by kind permission of Tony Barnes
|
