                                                                             Pilot's Notes
                                         PART VI

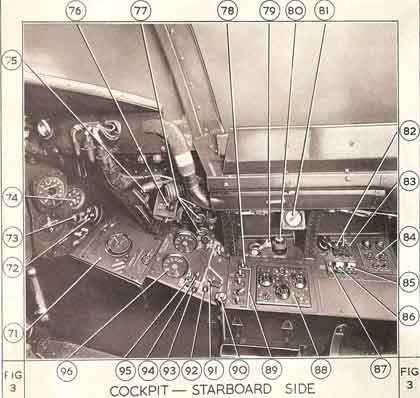

                                                     KEY TO FIG. 3 COCKPIT STARBOARD SIDE
[Click green text to jump to detail in Pilots Note] Click numbers round picture for description of that item in the Notes
(Click green number beside the item to return to this page).
hunter6pic119.jpg, 21514 bytes
71.Mk. 17 oxygen regulator.
72.Oxygen contents gauge.
73.Cockpit pressure warning light.
74.Cockpit pressure altimeter.
75.Emergency light switch.
76.Engine anti-icing switch and indicator.
77.Cockpit lights switches.
78.Navigation lights switch.
79.Anti-G control.
80.Anti-G test button.
81.Anti-G pressure gauge.
82.Booster-pump circuit breakers.
83.Starter circuit-breaker.
84.Mk. 4F compass test panel.
85.Booster-pumps test switch.
86.Fire warning light test switch.
87.Butt test switch.
88.Rebecca control panel.
89.IFF control switches.
90.Emergency oxygen bottle control.
91.Fuel tanks selector switch (two off).
92.Fuel tanks wing/rear indicator (two off).
93.Transfer failure indicator (two off).
94.Booster-pump on/off switch (two off).
95.Booster-pump failure warning light (two off).
96.Fuel contents gauge (two off).
